MULTI-SHOT / MULTI-MATERIAL MOLDS

Product description

Mold features:

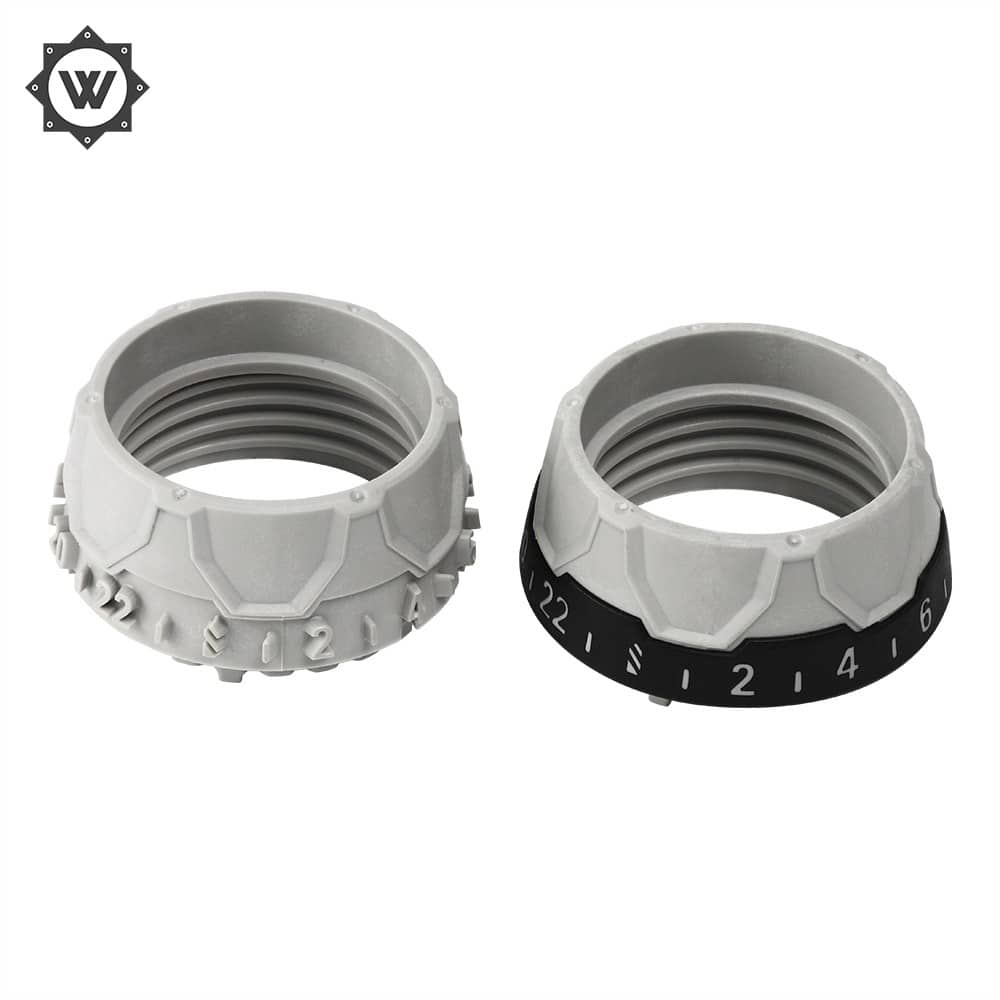

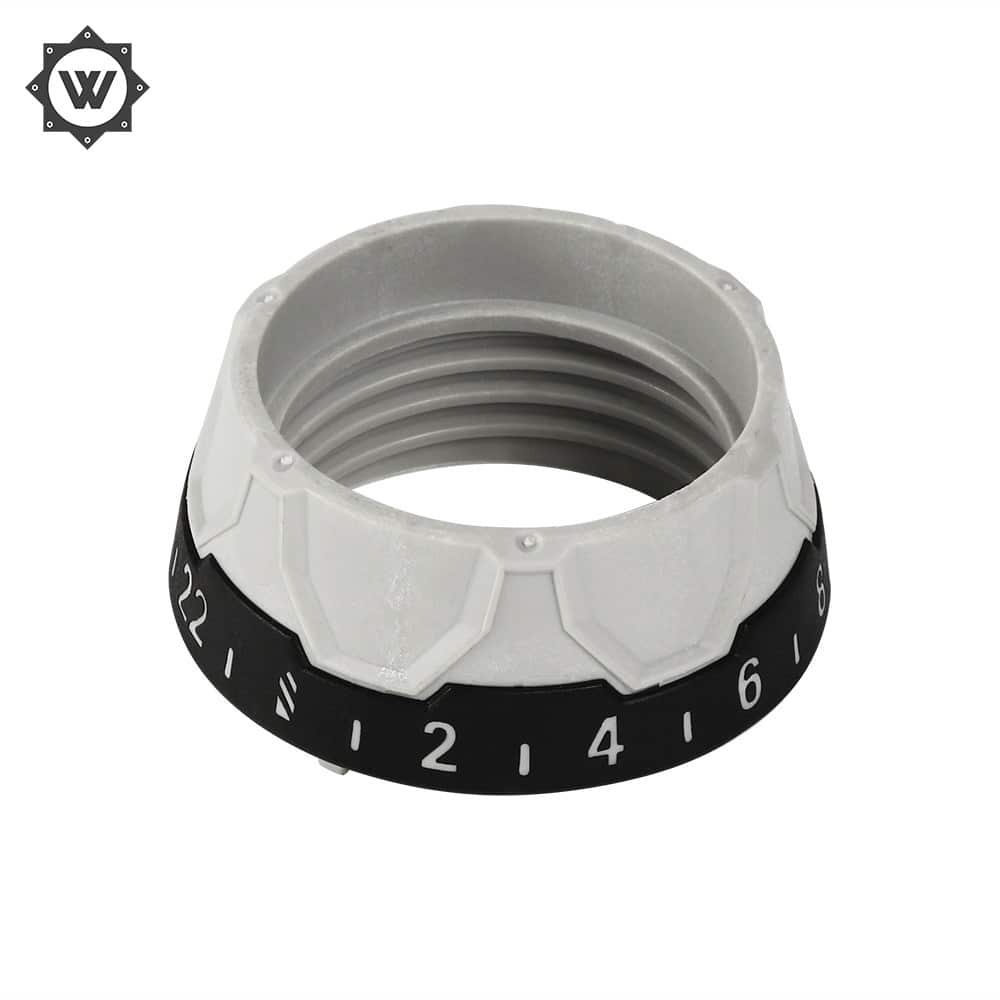

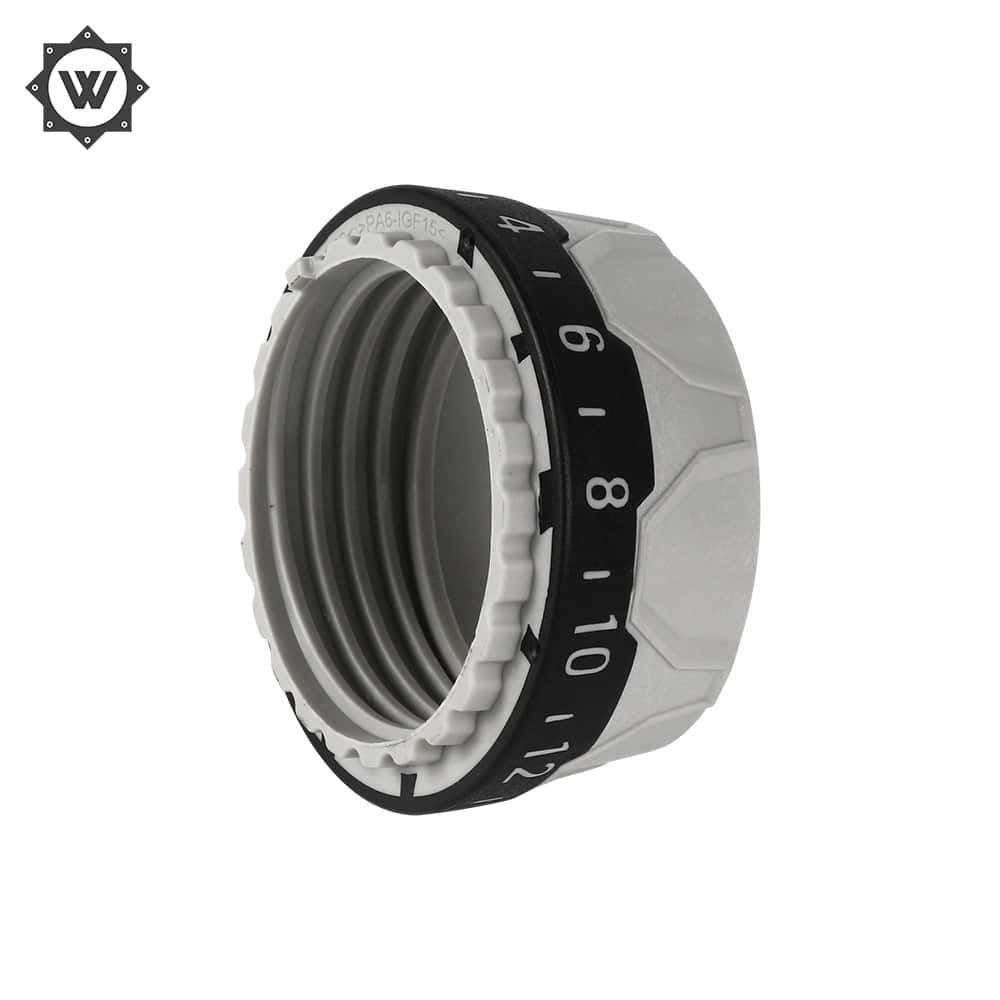

1. Industrial structural part with unscrewing thread.
2. Bi-injection mold/double injection mold/ 2 shot mold/2k injection moulding technology/ two-color mould.
3.  Hydraulic cylinder core pull to form the thread

Part function: Component for Industrial Equipment

Part material: PC+TPE

What are the advantages of two-color injection molding

1. Double color mold injection molding can replace secondary processing to one-time molding for products with different inner and outer layers of plastics.

2. Due to different color combinations, the two-color injection mold can give new life to the old products (molds). The core materials can use low viscosity raw materials to reduce the injection pressure.

3. Two color mold injection molding is not only a simple combination of two or multiple color plastics, but also puts forward higher requirements for injection molding machines in terms of product accuracy, beautiful appearance, better integration of different color plastics, and product molding cycle.

4. The two-color injection molding machine corresponding to two-color injection molding can also be used to produce monochrome products, one machine for two purposes, providing diversified functions and all-round services; The core material can use recycled waste or low-quality raw materials to reduce costs; High quality materials with special surface properties or anti electromagnetic interference and other materials can be used to increase product performance; Proper blending of the core material with the skin material can reduce the residual stress and increase the product strength.

Due to the high variability of two-color mold injection molding, in order to achieve smooth production and meet the expected ideal, all mold design must be considered simultaneously with the product design, and the specifications of the popular two-color mold injection molding machines are not uniform, resulting in more problems to be considered in mold design; In addition, mold manufacturers must pay more attention to the lack of versatility.
