Plastic Overmould Tooling

Description

Tool Features:

1. Complicated mold structure/ double injection mould/ dual color molding
2. Good cooling and venting

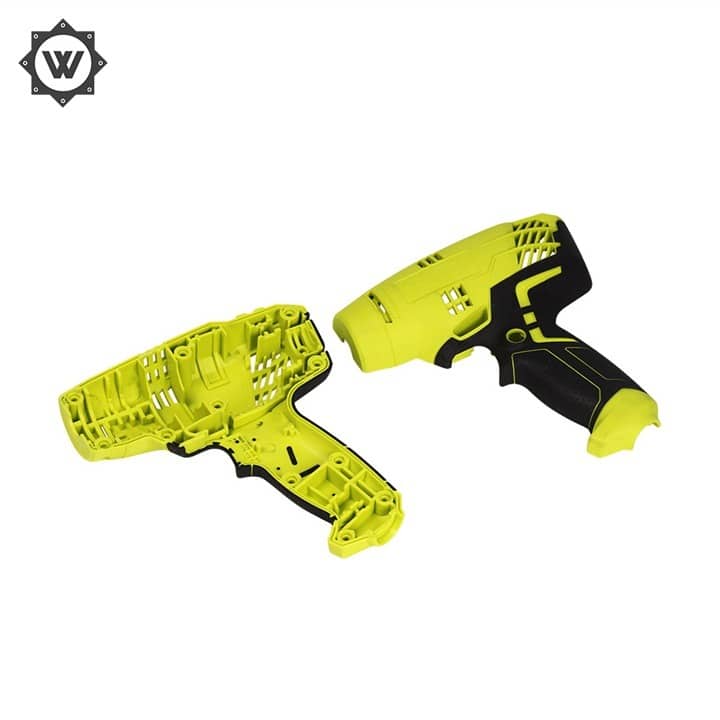

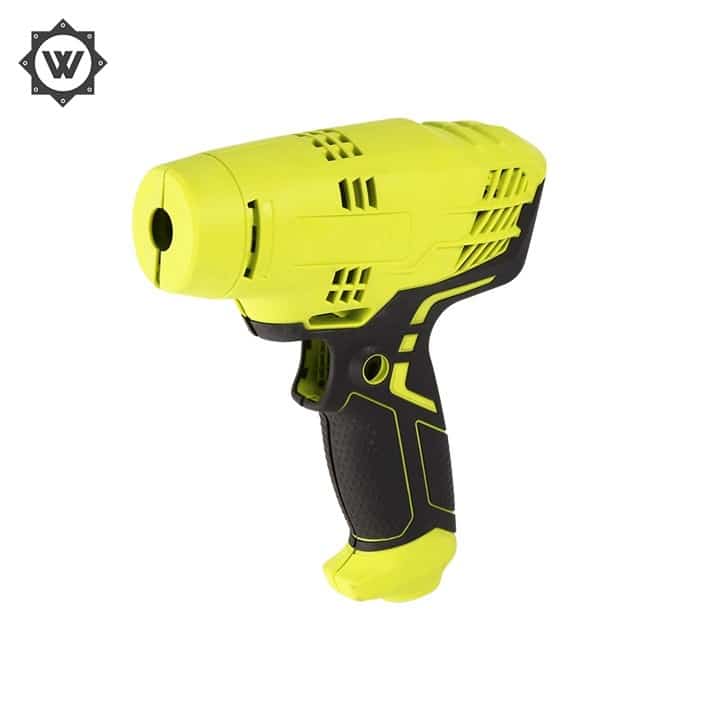

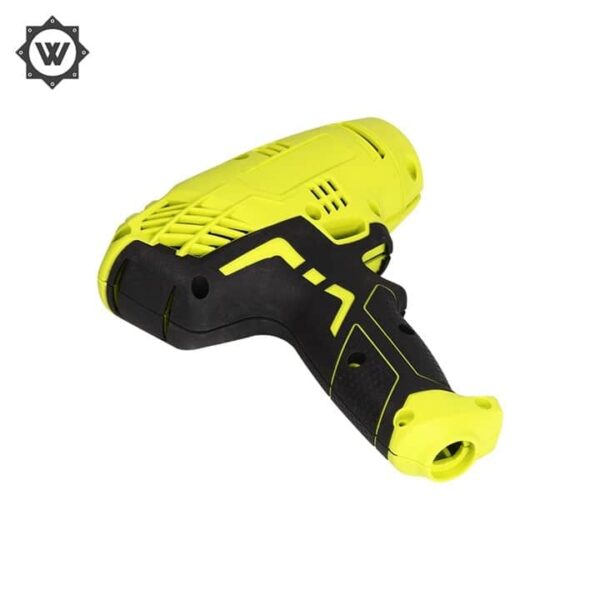

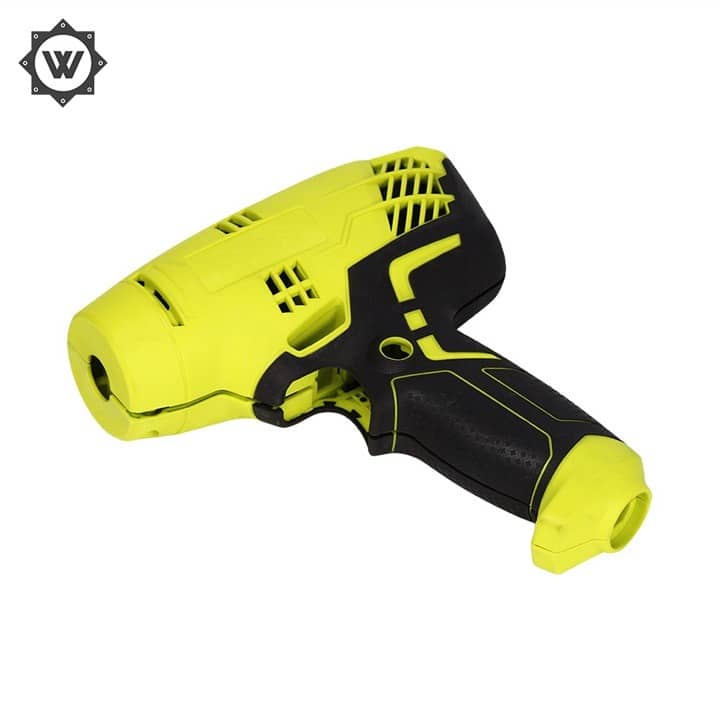

Part function: Electronic tool housing/handle

Mold size: 600*500*361 MM

Injection molding machine size: 250T double injection molding machine

Ejector stroke: 25MM

Part material: PP+30%GF

Shrink rate: .003” inch/inch

Cavity and core steel: GS738H/ 1.2738 (30-32HRC)

Number of cavities.: 1+1 Cavity
