Threaded Pipe Unscrewing Tooling

Description

Tool features:

1. Inner thread mould/ inner unscrewing mould.
2. Outer thread mould/Outer unscrewing mold/ Threaded plasic mouldings.
3. Complicated mold structure/ Hydraulic cylinder core pull to form inner thread/ Collapsible core pull .

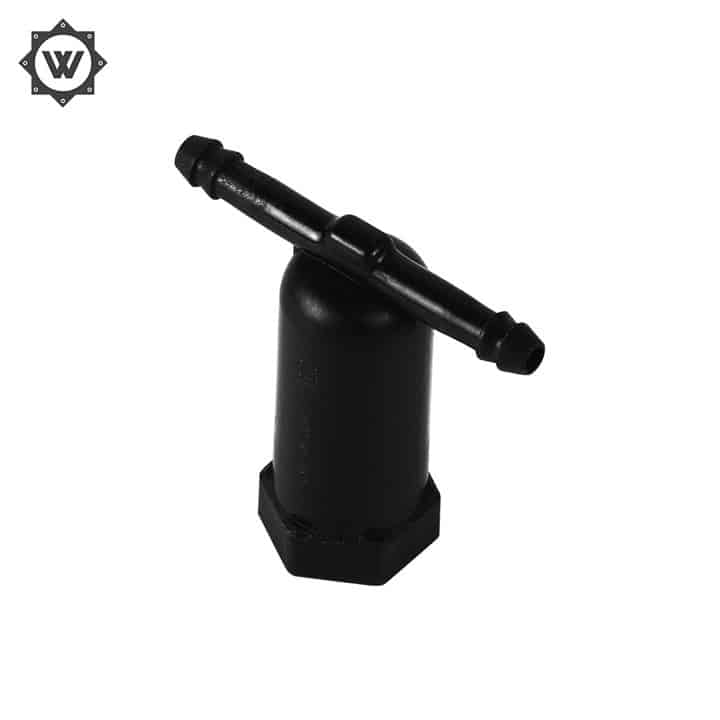

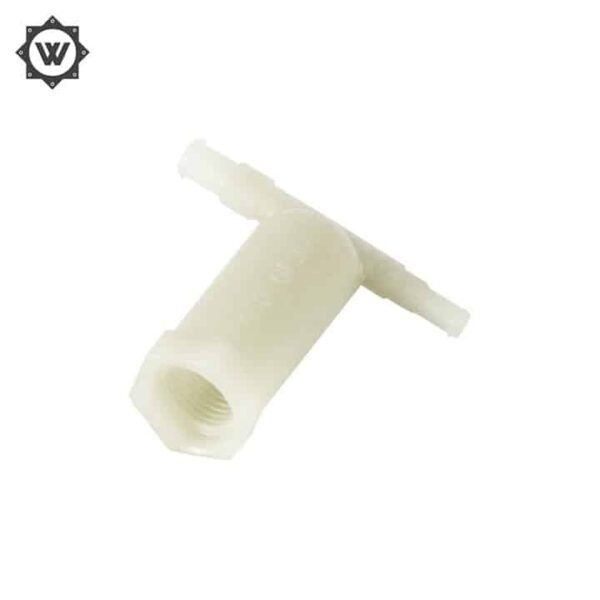

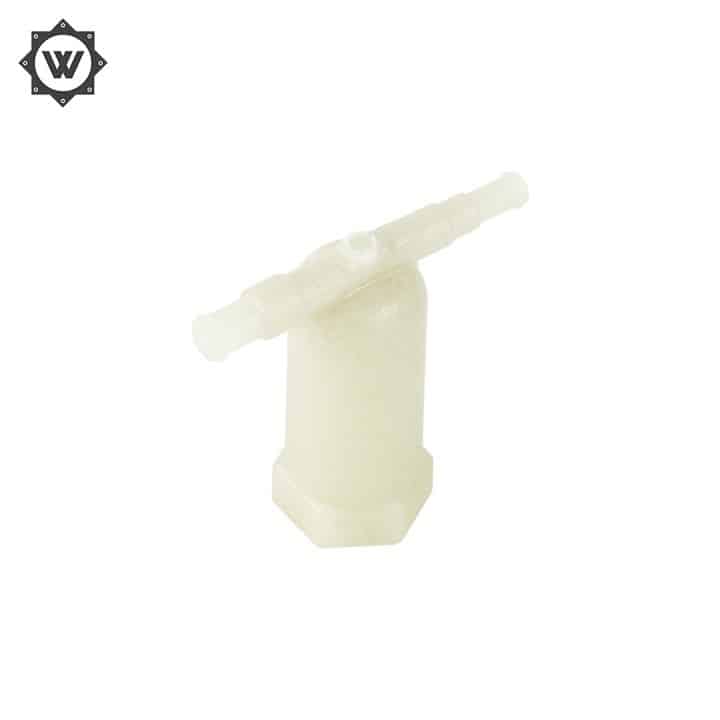

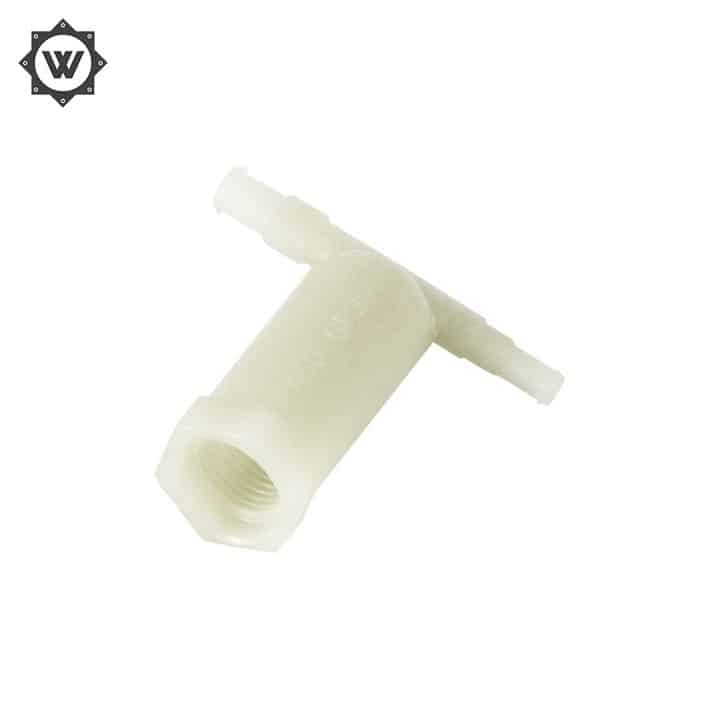

Part function: Pipes Components for water supply and drainage system

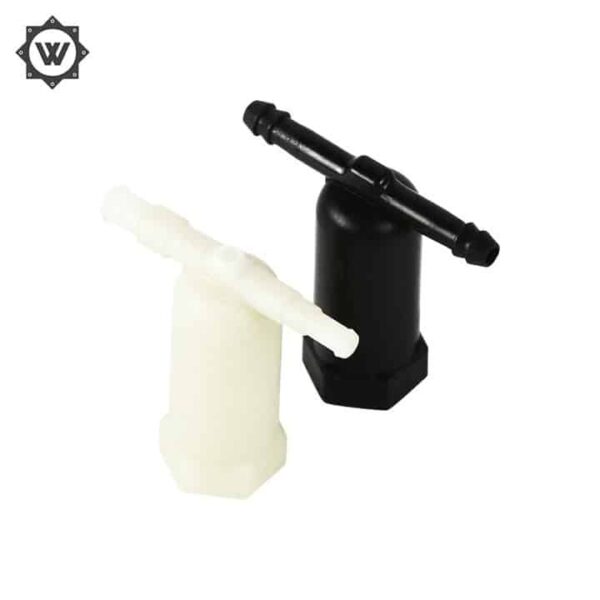

Part material: PP+10%GF natural & black

Shrink rate： .005 inch/inch

Part finish: SPI-B1



Cavity and core steel: H13 (48-52HRC)

Mold base: 1050

Standard components: DME English standard

Gate type: Cold runner sub gate

Number of Cavities.: Single Cavity

Mold size: 450X450X521mm

Injection molding machine: 250 Ton
